INTERIOR GRADE COMPACT

Archidlam Interior Grade Compact Laminates are formulated with inner core of celluloid fibres impregnated with special thermosetting resins. These laminates are...

Premium Quality
More Than Surfaces
INTERIOR GRADE COMPACT

INTERIOR GRADE COMPACT

Category Compacts

Product Overview

Detailed Description

Interior Grade Compact: The Ultimate Solution for High-Traffic Areas

When designing commercial, institutional, or highly utilized interior spaces, traditional wood or standard laminates often fall short of the required durability. Archidply’s Interior Grade Compact panels are self-supporting, high-pressure laminates (HPL) designed to offer extraordinary resilience and stunning aesthetics. Extremely dense and robust, these compact laminates are the perfect choice for areas that demand maximum hygiene, impact resistance, and long-lasting performance.

What is a Compact Laminate?

Unlike standard laminates that are merely a millimeter thick and must be glued to a substrate like plywood, compact laminates are self-supporting structural panels. They are manufactured by pressing multiple layers of kraft paper, which have been heavily impregnated with phenolic resin, together with decorative surface papers impregnated with melamine resin. This assembly is fused under immense heat (150°C) and extreme hydraulic pressure. The result is a solid, completely homogeneous core that is incredibly dense, strong, and entirely self-sufficient.

Unmatched Durability and Impact Resistance

Because it is a solid mass of resin-infused paper, the Interior Grade Compact is virtually indestructible under normal interior conditions. It boasts exceptional resistance to impact, preventing the dents and gouges that plague softwoods and hollow doors. Furthermore, it is highly resistant to scratches and abrasion, ensuring that the decorative surface remains pristine even in areas with heavy foot traffic, such as schools, hospitals, and shopping malls.

Superior Hygiene and Easy Maintenance

The surface of the compact laminate is completely non-porous. This means it does not absorb liquids, making it highly resistant to stains from coffee, ink, or chemicals. More importantly, this non-porous nature prevents the growth of bacteria, mold, and mildew, making it a highly hygienic material. Cleaning is effortless—a simple wipe down with a mild detergent and water is sufficient to maintain a sterile and beautiful surface.

Water and Moisture Resistant

While intended for interiors, the Interior Grade Compact is highly resistant to moisture and steam. Unlike traditional wood panels that swell and rot when exposed to dampness, compact laminates maintain their structural integrity perfectly. This makes them the premier choice for wet or highly humid indoor environments.

Ideal Applications

Thanks to its self-supporting nature and extreme durability, the Interior Grade Compact is exceptionally versatile and is the preferred material for:

  • Restroom and Shower Cubicles: Withstands constant moisture and rigorous daily cleaning.
  • Lockers and Benches: Provides robust, hygienic storage in gyms and schools.
  • Wall Paneling in Corridors: Protects walls in high-traffic hospital and office hallways.
  • Laboratory and Hospital Furniture: Offers a chemical-resistant, sterile surface for critical environments.

For interior spaces that cannot compromise on strength, hygiene, or design, Archidply’s Interior Grade Compact is the definitive structural solution.

Key Features & USPs

Aesthetically beautiful

Mold Resistant

Termite Resistant

Impact Resistant

Technical Specifications

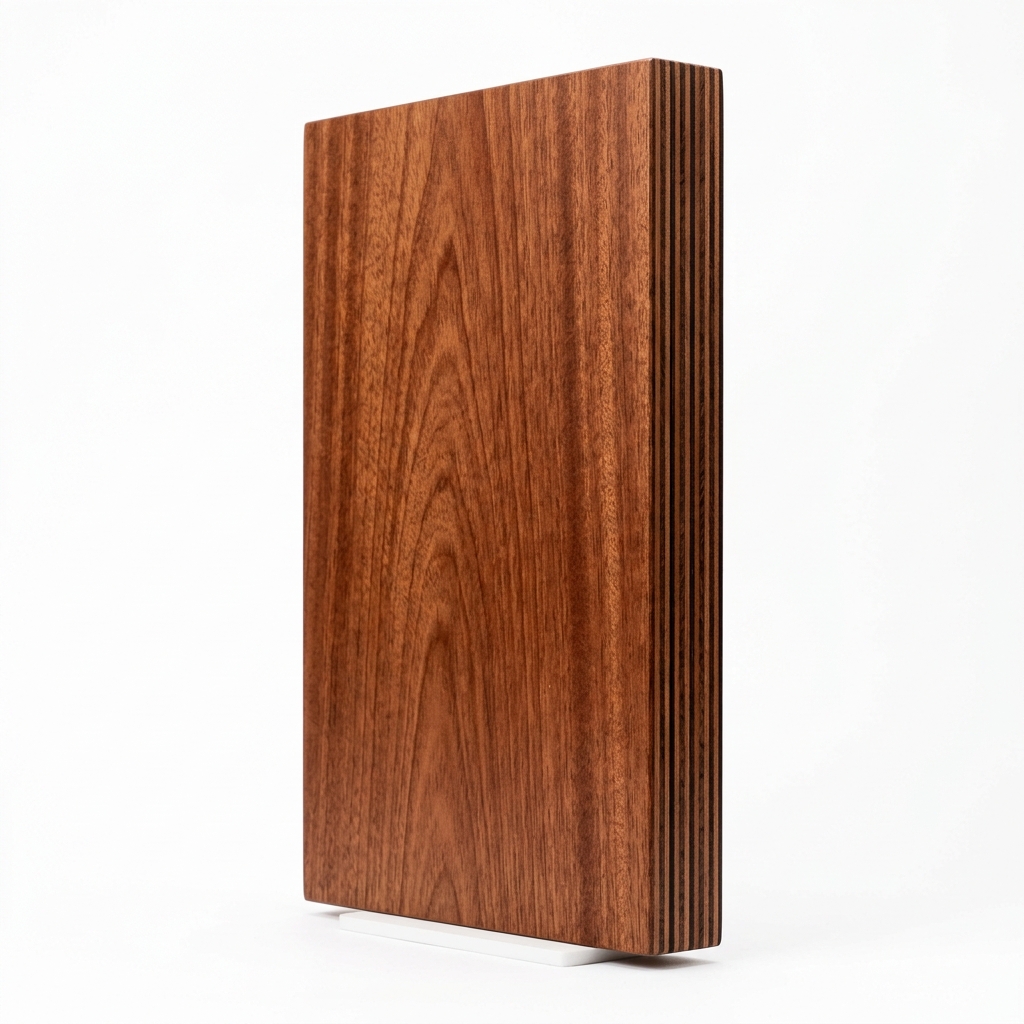

INTERIOR GRADE COMPACT Technical Diagram
Physical & Dimensions
Parameter Value
Length 2440mm ± 10mm
Width 1220mm ± 10mm
Thickness 4mm ± 0.30mm
Density 1.35 g/cm³
Tensile strength 70 Mpa (Min.)
Flexural Modulus 10000 Mpa (Min.)
Flexural Strength 100 Mpa (Min.)
Stability & Impact
Parameter Value
Stability at deviated Temp (Long/Trans) Max 0.27% / 0.58%
Stability at deviated 20°C (Long/Trans) Max 0.18% / 0.26%
Impact by Large Ball Max 10 mm
Surface Wear Resistance Revolution 350 min.
Thermal & Moisture Resistance
Parameter Value
Resistance to moisture Not worse than 4 grade
Resistance to steam Not worse than 4 grade
Resistance to dry heat at 180°C Not worse than 4 grade
Resistance to Boiling Water (Mass/Thick) Max 2.80% / Max 3.0%
Durability & Aesthetic
Parameter Value
Resistance to cigarette burn Not worse than 3 grade
Resistance to Scratch 2.0 Newton (Min.)
Resistance to Crazing Not worse than 4 grade
Resistance to Staining (Group 1&2 / 3&4) Not worse than 5 / 4 grade
Colour change (Xenon / Carbon arc) Not worse than 6 / 5 grade

Standard Sizes

# Thickness (mm) Length (ft) Width (ft)
1 19 6 3
2 16 6 4
3 12 7 3
4 4 8 4
5 6 8 3
6 9 7 4

Frequently Asked Questions

To accommodate diverse architectural needs, INTERIOR GRADE COMPACT is manufactured in a variety of industry-standard dimensions. Depending on your specific project requirements for Compacts, it is available in multiple thicknesses and sheet sizes. For a comprehensive list of exact dimensions, please refer to the 'Standard Sizes' section above or download our technical brochure.

Absolutely. INTERIOR GRADE COMPACT is designed to withstand heavy usage, making it an excellent investment for commercial spaces, offices, and retail environments. Thanks to its premium raw materials composition, it offers exceptional impact resistance and dimensional stability, ensuring that your Compacts installations remain pristine even in demanding, high-traffic scenarios.

Maintaining INTERIOR GRADE COMPACT is remarkably simple due to its robust surface finish. We recommend regular dusting with a soft microfiber cloth. For deeper cleaning, use a slightly damp cloth with a mild, non-abrasive cleaner. Because it is a high-grade product, it naturally resists everyday wear and tear, but avoiding harsh chemicals will help preserve its premium finish for decades.

Yes, Archidply stands firmly behind the quality of INTERIOR GRADE COMPACT. As a high-grade Compacts product, it is backed by a comprehensive manufacturer's warranty against manufacturing defects, borer, and termite attacks (where applicable). Our rigorous quality control ensures you receive a product built to last a lifetime.

Environmental sustainability is a core priority at Archidply. INTERIOR GRADE COMPACT is manufactured using responsibly sourced premium raw materials and low-VOC (Volatile Organic Compound) resins. This ensures minimal emissions, making it completely safe for residential interiors, schools, and hospitals while maintaining strict compliance with environmental standards.
